3rd Gen Dodge Ram 1500 Fitment Guide (2002-2008)
Quick Answer
Every 3rd gen Dodge Ram 1500 with a Quad Cab configuration, from 2002 through 2008, runs a 5-lug 5x139.7 mm (5x5.5") bolt pattern with a 77.8 mm hub bore and imperial 9/16"-18 lug studs torqued to 130 lb-ft. The same pattern runs from 1994 all the way through 2018, so nearly a quarter century of Ram wheels bolt onto your truck.
Don't confuse this with the Mega Cab model of these trucks, though. Mega Cab Ram 1500 models ran an 8x6.5mm bolt pattern, so make sure you know what you've got before you start building.
So you own, or just picked up, a 2002-2008 Dodge Ram 1500. Welcome to the best-kept secret in cheap truck builds: these trucks cost pocket change, share their bolt pattern with twenty-plus years of Ram production, and clear 33s on completely stock suspension. This guide covers the exact specs for every year, what came stock, and the setups already proven on real customer trucks at every height.
Dodge Ram 1500 Wheel Specs by Year (2002-2008)
Dodge held these numbers steady across the entire generation. Whether you drive a 2003, 2005, or 2008, these are your specs:
| Year | Bolt Pattern | Hub Bore | Lug Studs | Torque |
|---|---|---|---|---|
| 2002 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2003 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2004 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2005 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2006 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2007 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
| 2008 Dodge Ram 1500 | 5x139.7 (5x5.5") | 77.8 mm | 9/16"-18 | 130 lb-ft |
Bolt pattern and lug pattern mean the same thing: five lugs on a 139.7 mm circle. Want to double-check it yourself? Our bolt pattern guide takes two minutes.
Ram 1500 Bolt Pattern by Generation
Here's the family tree, and it's generous to 3rd gen owners: your pattern spans a quarter century of trucks, which makes used and takeoff wheels plentiful and cheap.
| Generation | Bolt Pattern | Notes |
|---|---|---|
| 2nd gen (1994-2001) | 5x139.7 (5x5.5") | Same pattern; wheels swap onto your truck |
| 3rd gen (2002-2008) | 5x139.7 (5x5.5") | This guide |
| 4th gen (2009-2018) + Classic (2019-2024) | 5x139.7 (5x5.5") | Same pattern; see our 4th gen guide |
| 5th gen (2019+ new body) | 6x139.7 (6x5.5") | Six lugs; does not interchange, see our 5th gen guide |
Two things trip up 3rd gen owners. First, the badge: these trucks are Dodge Ram 1500s, since Ram didn't become its own brand until 2009, so search and shop under either name. Second, the big brother: the 2003+ Ram 2500 and 3500 are 8-lug trucks, and their wheels will not fit your 1500 no matter how similar the trucks look in the parking lot.
Stock Wheels & Tires for the 3rd Gen Ram 1500
Wondering about your stock setup, or what clears over it? Here's what these trucks wore from the factory:
| Factory Wheel | Stock Tire Size | Overall Diameter | Typical Trims |
|---|---|---|---|
| 17x7 | 245/70R17 | 30.5" | ST / base SLT |
| 17x8 | 265/70R17 | 31.6" | SLT / Sport / TRX4 |
| 20 inch (optional) | 275/60R20 | 33.0" | Sport and special editions |
Even here, in 2004, Dodge was quietly proving the point: the optional 20s wore true 33 inch rubber on stock suspension. That's your green light. The most popular setups below simply take that factory-proven clearance and add width and attitude through offset, which our wheel offset guide explains.
What Fits at Every Suspension Height
These setups come from real customer trucks: combinations we know clear because they're already on the road. Find your suspension, pick your lane.
2004 Dodge Ram 1500 on stock suspension with Moto Metal MO962 black wheels.
Stock Suspension Fitment
The most common setup for this generation on stock suspension is a set of 20x10 -24 wheels with 33x12.5R20 tires. Factory-proven 33 inch height, aftermarket width and stance.
- Small wheel, big tire: 17x9 -12 wheels with 33x12.5R17 tires
- Daily driver: 20x10 -24 wheels with 33x12.5R20 tires
- Big wheel, small tire: 22x10 -24 wheels with 305/45R22 tires
2008 Dodge Ram 1500 with a MotoFab leveling kit on Moto Metal MO962 black wheels.
Leveling Kit Fitment
A leveling kit squares the stance and adds breathing room around the same proven sizes. The go-to package is 20x10 -24 wheels with 33x12.5R20 tires, now with margin to spare.
- Small wheel, big tire: 17x9 -12 wheels with 33x12.5R17 tires
- Daily driver: 20x10 -24 wheels with 33x12.5R20 tires
- Big wheel, small tire: 22x10 -24 wheels with 33x12.5R22 tires

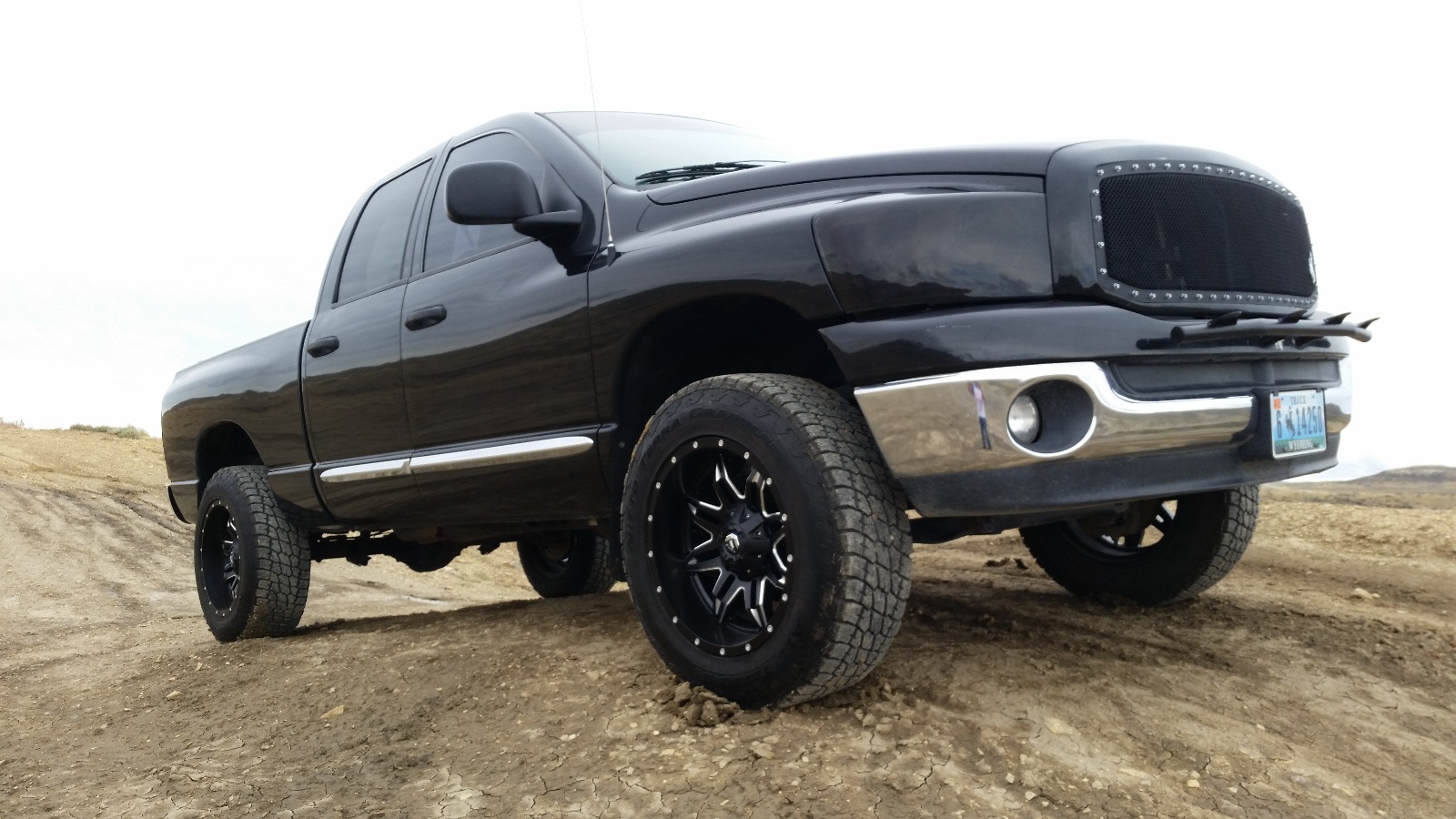

2006 Dodge Ram 1500 with a 3 inch lift on Fuel Lethal black wheels.
3-Inch Lift Fitment
A 3 inch lift adds ground clearance and opens the door to wider wheels under the 33s. The most popular setup holds at 20x10 -24 wheels with 33x12.5R20 tires, with 22x12s entering the picture.
- Small wheel, big tire: 18x9 -12 wheels with 33x12.5R18 tires
- Daily driver: 20x10 -24 wheels with 33x12.5R20 tires
- Big wheel, small tire: 22x12 -44 wheels with 33x12.5R22 tires (will require plastic trimming)

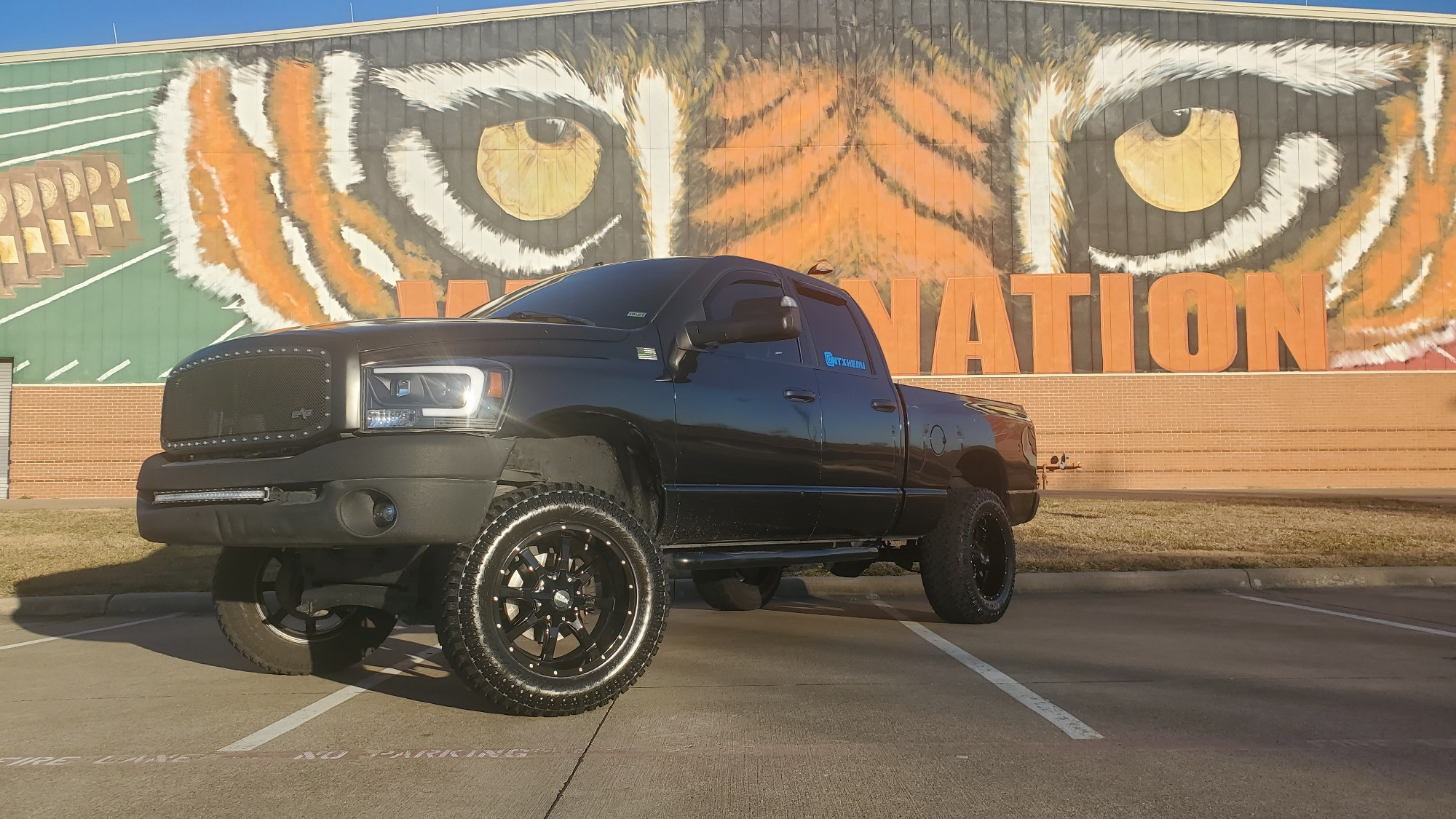

2008 Dodge Ram 1500 with a 6 inch Pro Comp lift on Moto Metal MO970 black wheels.
4-6 Inch Lift Fitment
With a 4-6 inch lift, tires over 33 inches clear without major modifications and aggressive offsets fit. The proven combo: 20x10 -24 wheels with 35x12.5R20 tires.
- Small wheel, big tire: 17x9 -12 wheels with 35x12.5R17 tires
- Daily driver: 20x10 -24 wheels with 35x12.5R20 tires
- Big wheel, small tire: 22x12 -44 wheels with 35x12.5R22 tires (6 inch lift and plastic trimming required)
Max Tire Size at Every Height
The question behind every question: how big can I go? Here's the honest answer for a 3rd gen Ram 1500, height by height:
| Suspension | Comfortable Max | Notes |
|---|---|---|
| Stock | 33x12.5 (33") | Factory 20 inch editions already ran 33 inch tall rubber |
| Leveling kit | 33x12.5 (33") | Same tire, extra margin, squared stance |
| 3" lift | 33x12.5 (33") | Adds room for wide 22x12 setups under the 33s |
| 4-6" lift | 35x12.5 (35") | 35s daily-drivable; widest setups need trimming |
Skip the Guesswork. Get a Package Priced for Your Truck
Tell us your year, trim, and suspension. We'll quote a wheel and tire package that's mounted, balanced, and ready to bolt on, backed by real fitment experts and financing as low as 0% APR.
Build Your Free Quote3rd Gen Dodge Ram 1500 Fitment FAQ
What is the bolt pattern on a 2003 Dodge Ram 1500?
A 2003 Dodge Ram 1500 uses a 5-lug 5x139.7 mm (5x5.5 inch) bolt pattern with a 77.8 mm hub bore. The same pattern applies to every 3rd gen truck from 2002 through 2008, and in fact to every Ram 1500 built from 1994 through 2018.
What is the lug pattern for a 2002-2008 Dodge Ram 1500?
The lug pattern, which is the same thing as the bolt pattern, is 5x5.5 inches (5x139.7 mm) on every 2002-2008 Dodge Ram 1500. These trucks use imperial 9/16 inch-18 lug studs torqued to 130 lb-ft in a star pattern.
Do 2nd gen or 4th gen Ram wheels fit a 3rd gen Ram 1500?
Yes. The 1994-2001 second gen, your 2002-2008 third gen, and the 2009-2018 fourth gen (plus the 2019-2024 Ram 1500 Classic) all share the 5x139.7 bolt pattern, so wheels swap across nearly a quarter century of trucks. Only the 2019+ new-body 5th gen breaks the chain with its 6-lug pattern.
What size tires come stock on a 3rd gen Dodge Ram 1500?
A 2002-2008 Dodge Ram 1500 came stock with 245/70R17 tires on 17x7 wheels or 265/70R17 on 17x8 wheels, with optional 20 inch wheels wearing 275/60R20 on Sport and special edition trucks. That optional 20 inch tire stands a true 33 inches tall.
What is the biggest tire that fits a stock 3rd gen Ram 1500?
A 33x12.5 fits a completely stock 3rd gen Ram 1500, and 20x10 -24 wheels with 33x12.5R20 tires is the most popular setup on this truck. Dodge itself shipped 33 inch tall rubber on the optional factory 20s. For 35s, plan on a 4-6 inch lift.
Is a Dodge Ram 1500 the same as a Ram 1500?
Yes, for these years. Through 2008 the truck was badged and sold as the Dodge Ram 1500; Ram became its own standalone brand in 2009. So a 3rd gen owner searching either name is looking at the same truck, the same 5x5.5 bolt pattern, and the same wheels.
Shop Wheels & Tires for Your Ram
Here's the Mr. Wheel Deal difference: you don't piece it together, we do. Browse 5x5.5 bolt pattern wheels that fit your 3rd gen right out of the box, pair them with tires from the setups above, and every package ships mounted, balanced, and ready to install. No tire shop appointment, no surprises. Building on a budget? These trucks are our favorite kind of project, and the quote is free.
